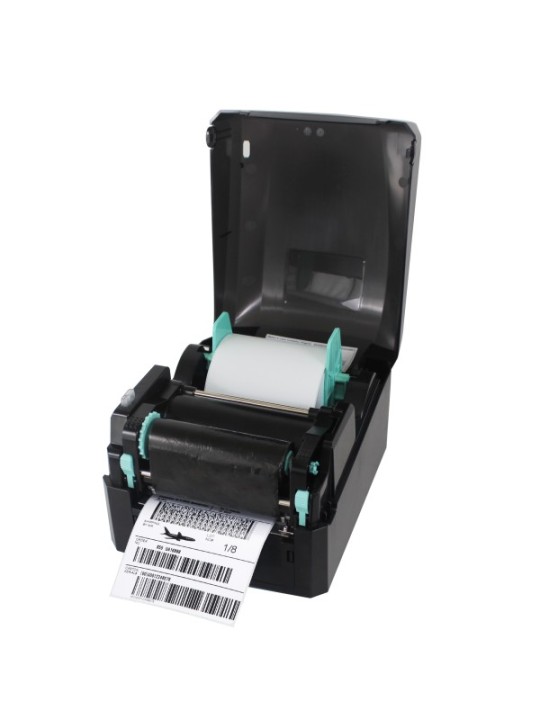

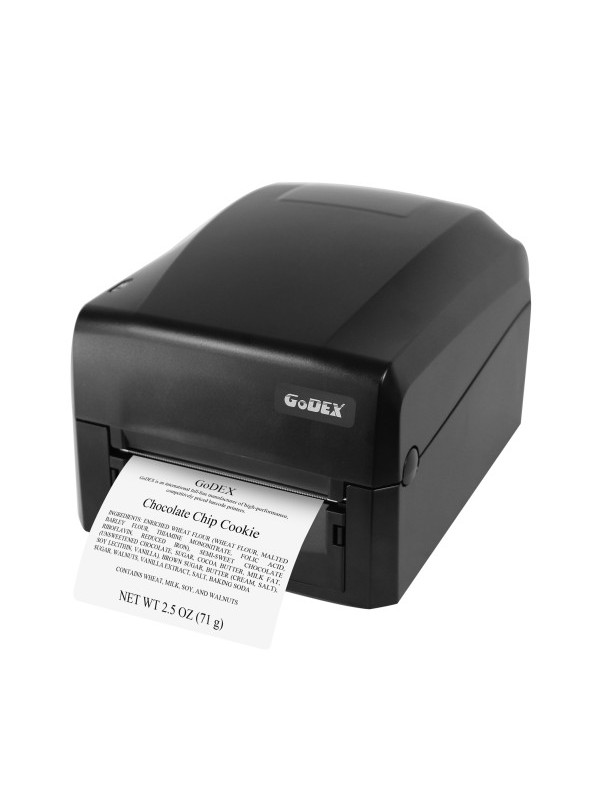

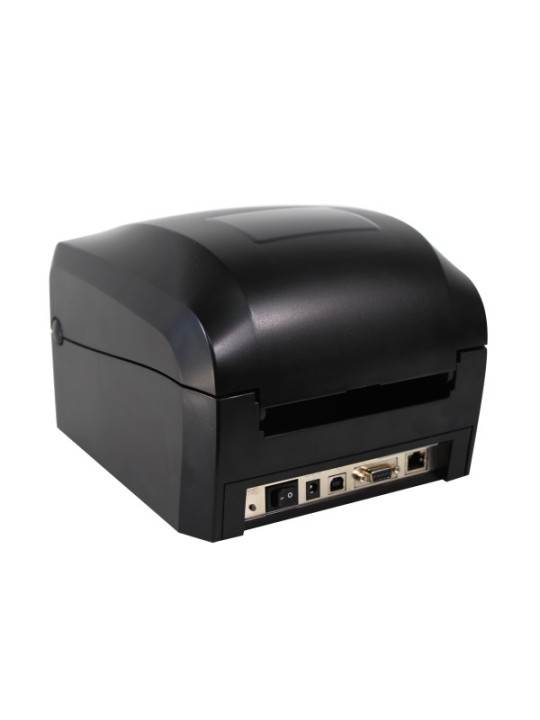

Godex GE300 label printer
GE300
Economical 4” Thermal Transfer Desktop Printer
Use the GE300 for all you light to medium duty thermal transfer barcode printing applications.
Delivery time from 1 day
Easy and quick return of goods
The price in the e-store is -20% lower
Pick up in the Inktoner store, free
| Feature | Value |
|---|---|
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 5 IPS (127 mm/s)** |
| Print Width | 4.25" (108 mm) |
| Print Length | Min. 0.16" (4 mm)** Max. 68" (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 8MB Flash (4MB for user storage); 16MB SDRAM |
| Sensor Type | Adjustable reflective sensor (full range). Fixed transmissive sensor |
| Media Types | Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming |
| Media Width | 1" (25.4 mm) Min. - 4.65" (118 mm) Max. |
| Media Thickness | Min. 0.0024" (0.06 mm) – Max. 0.008" (0.2 mm) |
| Label Roll Diameter | Max. 5" (127 mm) |
| Core Diameter | 1" (25.4 mm), 1.5" (38.1 mm) |
| Ribbon Types | Wax, wax / resin, resin |
| Ribbon Length | 360' (110 m) |
| Ribbon Width | 1.18" Min. - 4.33" (30 mm - 110 mm) Max. |
| Ribbon Roll Diameter | 1.57" (40 mm) |
| Ribbon Core Diameter | 0.5" (12.7 mm) |
| Printer Language | EZPL, GEPL, GZPL, GDPL auto switch |
| Label Design Software | GoLabel II (for EZPL only) (Windows) |
| Management Tools | GoTools (Windows / Android), GoUtility (Windows) |
| Satin Ribbon Printing Tool | GoRibbon (Windows) |
| APP | GoAPP (Android / iOS) |
| Driver | Windows 7, Windows 8 & 8.1, Windows 10, Windows 11, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, MAC, Linux |
| SDK | Win CE, .NET, Windows 7, Windows 8 & 8.1, Windows 10, Windows 11, Android, Mac, iOS |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B; 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable; 8 times expandable in horizontal and vertical directions; TTF Fonts: (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Download Fonts | Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable; Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001); 0°, 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions; TTF fonts: (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Barcodes 1-D Bar codes | China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of 5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart, Random Weight and Pharmacode |
| Barcodes 2-D Bar codes | Aztec code, Code 49, Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417, QR code, TLC 39, GS1 Composite, DotCode, Marco PDF 417 |
| Code Pages | Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869; Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257; Unicode UTF8, UTF16BE, UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | USB 2.0 (Type B); Serial port (RS232); Ethernet 10/100 Mbps |
| Real Time Clock | Options |
| Control Panel | One Tri-color LED: Power (Green, Orange and Red); Function Key: FEED; Calibration Button |
| Power | External auto switching power supply; Input: AC 100-240V, 50-60Hz; Output: DC 24V, 2.5A |
| Environment Operation temperature | 41°F to 104°F (5°C to 40°C) |
| Environment Storage temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity Operation | 30-85%, non-condensing |
| Humidity Storage | 10-90%, non-condensing |
| Agency Approvals | CE (EMC), FCC Class B, CB, cULus, CCC, BSMI, UKCA, BIS, ENERGY STAR |
| Dimension | Length 252 mm (9.92”); Width 200 mm (7.87”); Height 165 mm (6.50”) |
| Weight | 1.8 kg (4 lbs), excluding consumables |
| Options | Cutter module (Dealer Install); BT (Dealer Install); Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install); WiFi (IEEE 802.11 b/g/n) and BT (BLE 5.0) combo module (Dealer Install); Real Time Clock (RTC) (Dealer Install); External label unwind stand; External label rewinder; Left Alignment Printing Mechanism (Factory Install) |
| Warranty | 3-year limited warranty |
GE300
8 Items
Data sheet
- Manufacturer
- GoDEX
- Brand
- GoDEX
- Device
- Printer
- Type printer
- Desktop Printers
- Type printer
- Labeling
- Screen
- No
- Body color
- Black
Specific References
Economical 4” Thermal Transfer Desktop Printer
Use the GE300 for all you light to medium duty thermal transfer barcode printing applications.
