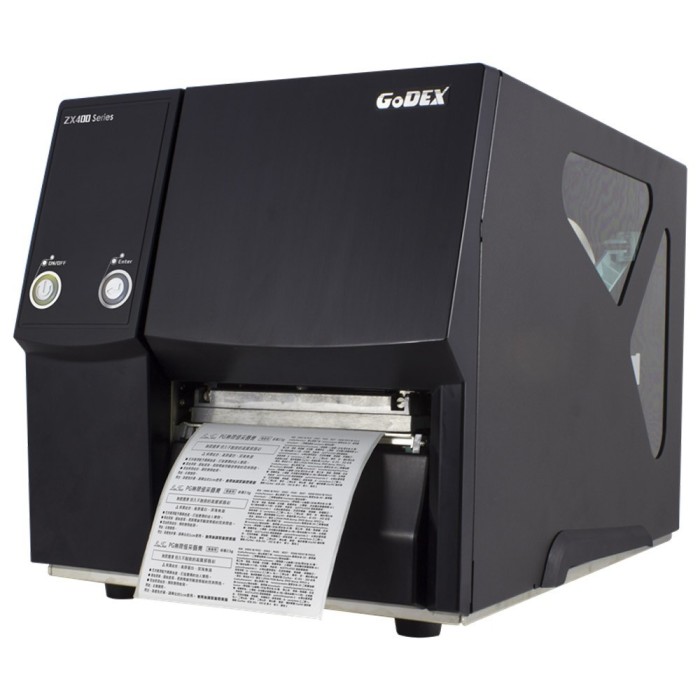

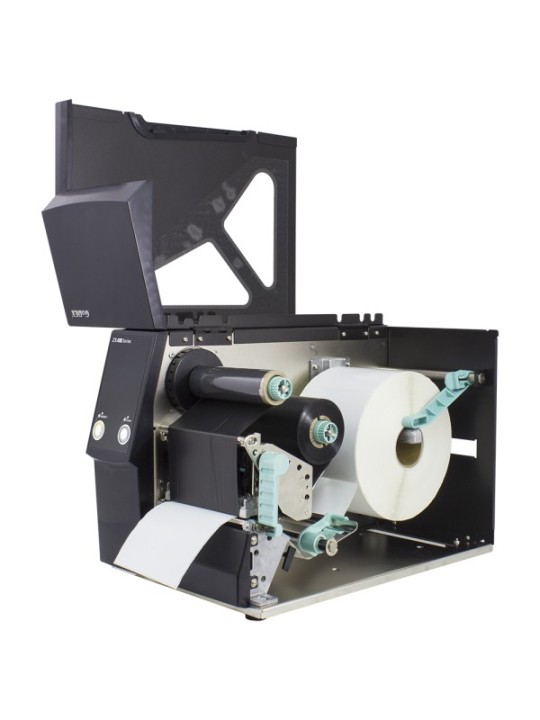

Godex ZX420 label printer
ZX420
The best combination of compactness and durable design.
Based on customer feedback, GoDEX's most cost-effective and space-saving printers are
GoDEX ZX400 / ZX400i, integrating industry-leading capabilities and excellent design.
Delivery time from 1 day
Easy and quick return of goods
The price in the e-store is -20% lower
Pick up in the Inktoner store, free
| Feature | Value |
|---|---|
| Print Method | Direct Thermal/Direct Trermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 6 inches per second (ips) (152 mm/s) |
| Print Width | 4.25 inches (108 mm) |
| Print Length | Min. 0.16 inches (4 mm); Max. 157.44 inches (3999 mm) r |
| Media Types | Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming |
| Media Thickness | From 0.003 inches (0.08 mm) to 0.004 inches (0.10 mm) |
| Label Roll Diameter | Max. 8” (203.2 mm) with 3″ (76.2 mm) core Max. 6” (152.4 mm) with 1.5″ (38.1 mm) core Max. 5″ (127 mm) with 1″ (25.4 mm) core |
| Core Diameter | Min. 1 ” (25.4 mm) – Max. 3″ (76.2 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB |
| Printer Language | EZPL, GEPL, GZPL, GDPL (auto switch) |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30 pt, OCR A & B; Bitmap fonts scalable up to 8×; TrueType fonts (Bold / Italic / Underline); Asian fonts: Traditional Chinese, Simplified Chinese, Japanese, Korean |
| Barcodes | 1D: Code 39, Code 93, Code 128, EAN-8 / EAN-13, UPC-A / UPC-E, GS1 DataBar, and more; 2D: QR Code, DataMatrix, PDF417, Aztec, MaxiCode, Micro QR, GS1 Composite |
| Interfaces | USB 2.0 (Type B), Serial Port (RS-232, DB-9), Ethernet 10/100 Mbps, USB Host (A-Type) |
| Control Panel | 1 Power on/standby button with green color LED backlight • 1 Calibration button at rear panel • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) |
| Power | Auto switching 100–240V AC, 50–60 Hz |
| Environment | Operating: 5 °C to 40 °C; Storage: -20 °C to 50 °C |
| Humidity | Operating: 30%–85% non-condensing; Storage: 10%–90% non-condensing |
| Dimensions | 403 × 274 × 260 mm |
| Weight | 10.8 kg |
| Certifications | CE (EMC), FCC Class B, CB, UL, cUL, CCC, BSMI, UKCA |
| Warranty | 5-year limited warranty |
ZX420
5 Items
Data sheet
- Manufacturer
- GoDEX
- Brand
- GoDEX
- Device
- Printer
- Type printer
- Desktop Printers
- Type printer
- Labeling
- Screen
- No
- Body color
- Black
Specific References
The best combination of compactness and durable design.
Based on customer feedback, GoDEX's most cost-effective and space-saving printers are
GoDEX ZX400 / ZX400i, integrating industry-leading capabilities and excellent design.
