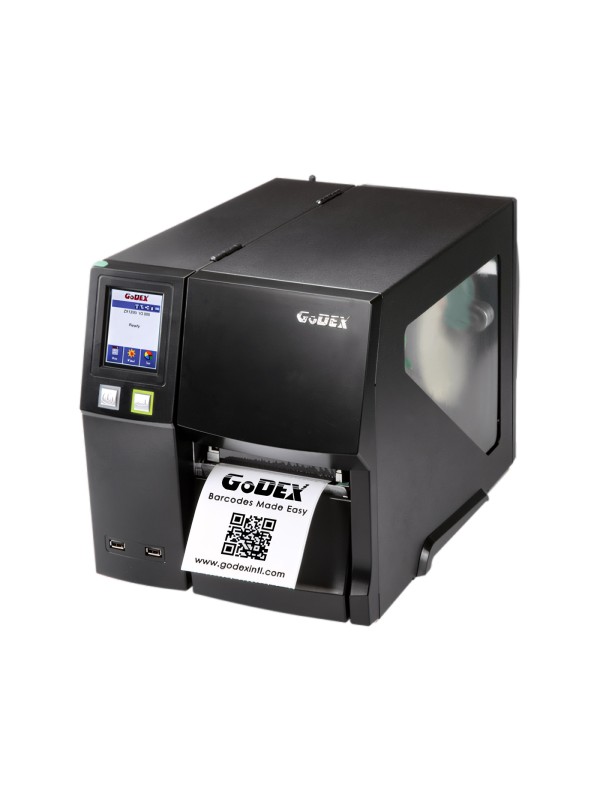

Godex ZX1300i+ label printer
ZX1300i+
The GODEX ZX1300i+ Label Printer is designed to meet the demands of high-volume and precision printing applications. Its robust steel design ensures durability, while various standard interfaces facilitate seamless integration into diverse environments. The large, intuitive touch screen LCD provides easy control, and the printer's high performance is evident with speeds of up to 10 ips. It also features easy and fast media/ribbon loading, making it ideal for both high-volume and precision printing needs. The 203 DPI model ensures clear and sharp printing.
Delivery time from 1 day
Easy and quick return of goods
The price in the e-store is -20% lower
Pick up in the Inktoner store, free
| Feature | Value |
|---|---|
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 7 IPS (178 mm/s) |
| Print Width | 4.09” (104 mm, up to 105.7mm) |
| Print Length | Min. 0.12” (3 mm)**; Max. 125.98” (3200 mm) |
| Media Types | Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming |
| Media Thickness | From 0.003 inches (0.08 mm) to 0.004 inches (0.10 mm) |
| Label Roll Diameter | Max. 8” (203.2 mm) with 3″ (76.2 mm) core Max. 6” (152.4 mm) with 1.5″ (38.1 mm) core Max. 5″ (127 mm) with 1″ (25.4 mm) core |
| Core Diameter | Min. 1 ” (25.4 mm) – Max. 3″ (76.2 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash 256 MB • SDRAM 256 MB |
| Printer Language | EZPL, GEPL, GZPL, GDPL (auto switch) |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30 pt, OCR A & B; Bitmap fonts scalable up to 8×; TrueType fonts (Bold / Italic / Underline); Asian fonts: Traditional Chinese, Simplified Chinese, Japanese, Korean |
| Barcodes | 1D: Code 39, Code 93, Code 128, EAN-8 / EAN-13, UPC-A / UPC-E, GS1 DataBar, and more; 2D: QR Code, DataMatrix, PDF417, Aztec, MaxiCode, Micro QR, GS1 Composite |
| Interfaces | USB 2.0 (Type B), Serial Port (RS-232, DB-9), Ethernet 10/100 Mbps, USB Host (A-Type) |
| Control Panel | Backlight 3.2” touch screen LCD • 1 Power on/off button with green colour LED backlight • 1 Control key: FEED/PAUSE/CANCEL with dual colour LED backlight: Ready(Green); Error(Red) • 1 Calibration button at rear panel |
| Power | Auto switching 100–240V AC, 50–60 Hz |
| Environment | Operating: 5 °C to 40 °C; Storage: -20 °C to 50 °C |
| Humidity | Operating: 30%–85% non-condensing; Storage: 10%–90% non-condensing |
| Dimensions | 465 × 269 × 312 mm |
| Weight | 13.6 kg |
| Certifications | CE (EMC), FCC Class B, CB, UL, cUL, CCC, BSMI, UKCA |
| Warranty | 5-year limited warranty |
ZX1300i+
5 Items
Data sheet
- Manufacturer
- GoDEX
- Brand
- GoDEX
- Type printer
- Labeling
- Type printer
- Desktop Printers
Specific References
The GODEX ZX1300i+ Label Printer is designed to meet the demands of high-volume and precision printing applications. Its robust steel design ensures durability, while various standard interfaces facilitate seamless integration into diverse environments. The large, intuitive touch screen LCD provides easy control, and the printer's high performance is evident with speeds of up to 10 ips. It also features easy and fast media/ribbon loading, making it ideal for both high-volume and precision printing needs. The 203 DPI model ensures clear and sharp printing.
