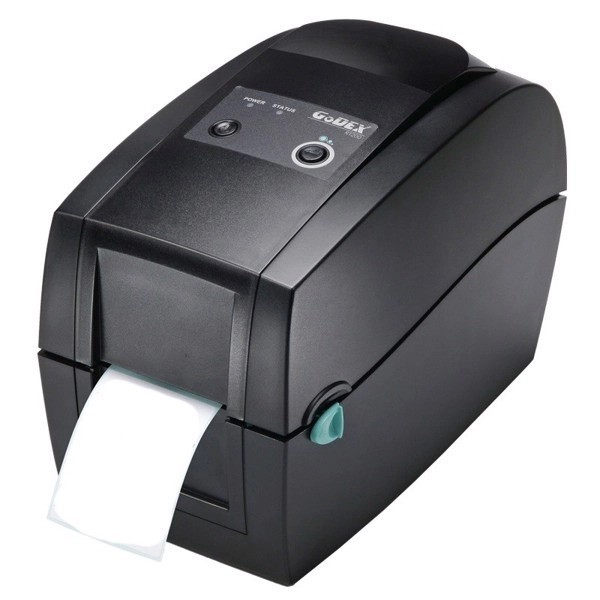

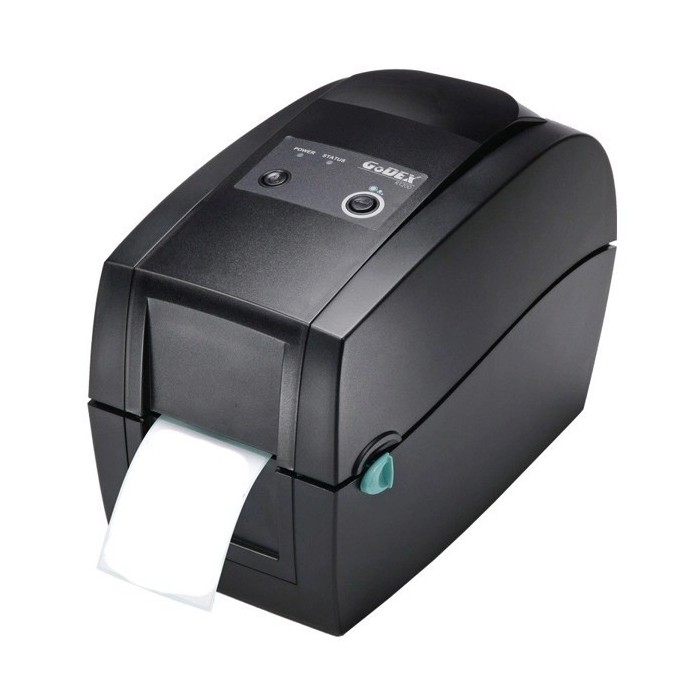

Godex DT230 label printer
DT230
The DT200 series is an ingenious design that brings several functions into one platform. It supports 203dpi or 300dpi printing resolution. A full line of optional accessories is available and the DT200L supports linerless media printing. All your needs can be satisfied with this series.
Delivery time from 1 day
Easy and quick return of goods
The price in the e-store is -20% lower
Pick up in the Inktoner store, free
| Feature | Value |
|---|---|
| Print Method | Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 5 inches per second (ips) (127 mm/s) |
| Print Width | 2.24 inches (57 mm) |
| Print Length | Min. 0.16 inches (4 mm); Max. 30 inches (762 mm) |

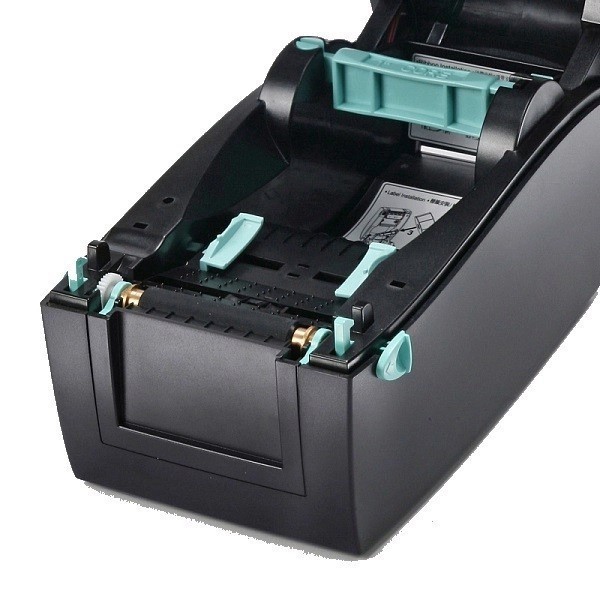

| Media Types | Continuous forms, gap labels, black mark sensing, punched hole labels |
| Media Thickness | From 0.003 inches (0.08 mm) to 0.008 inches (0.20 mm) |
| Label Roll Diameter | Max. 5 inches (127 mm) |
| Core Diameter | 1 inch (25.4 mm), 1.5 inches (38.1 mm) |
| Processor | 32-bit RISC CPU |
| Memory | 128 MB Flash (60 MB user available), 32 MB SDRAM |
| Printer Language | EZPL, GEPL, GZPL, GDPL (auto switch) |
| Resident Fonts | Bitmap fonts (6–30 pt), OCR A & B, scalable up to 8×; TrueType fonts (Bold / Italic / Underline); Asian fonts: Traditional Chinese, Simplified Chinese, Japanese, Korean |
| Barcodes | 1D: Code 39, Code 93, Code 128, EAN-8 / EAN-13, UPC-A / UPC-E, GS1 DataBar, etc. 2D: QR Code, DataMatrix, PDF417, Aztec, MaxiCode, Micro QR, GS1 Composite |
| Interfaces | USB 2.0 (Type B), Serial Port (RS-232, DB-9), Ethernet 10/100 Mbps |
| Control Panel | Two LEDs (Ready, Status), Power button, Calibration button, FEED key |
| Power | Auto switching 100–240V AC, 50–60 Hz |
| Environment | Operating: 5 °C to 40 °C; Storage: -20 °C to 50 °C |
| Humidity | Operating: 30%–85% non-condensing; Storage: 10%–90% non-condensing |
| Dimensions | 207 × 112 × 171 mm (8.15 × 4.41 × 6.73 inches) |
| Weight | 1.05 kg (2.31 lbs), excluding consumables |
| Certifications | CE (EMC), FCC Class B, CB, UL, cUL, CCC, BSMI, UKCA |
| Warranty | Two-year limited warranty |
DT230
Data sheet
- Manufacturer
- GoDEX
- Brand
- GoDEX
- Device
- Printer
- Type printer
- Desktop Printers
- Type printer
- Labeling
- Screen
- No
- Body color
- Black
Specific References
The DT200 series is an ingenious design that brings several functions into one platform. It supports 203dpi or 300dpi printing resolution. A full line of optional accessories is available and the DT200L supports linerless media printing. All your needs can be satisfied with this series.
