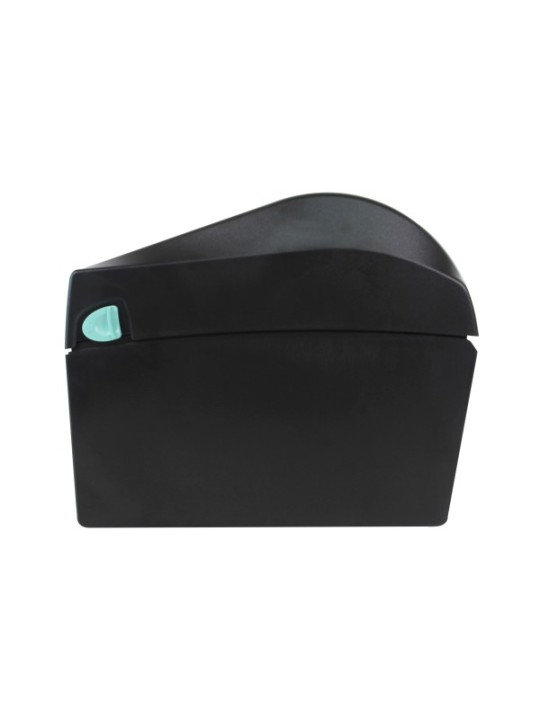

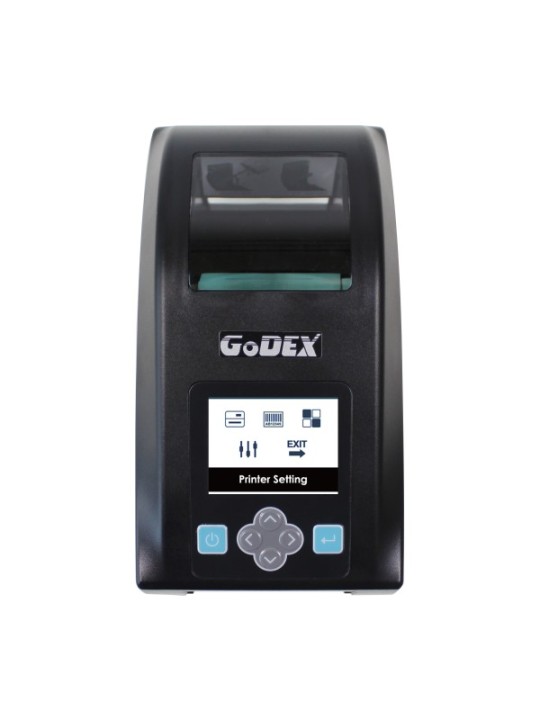

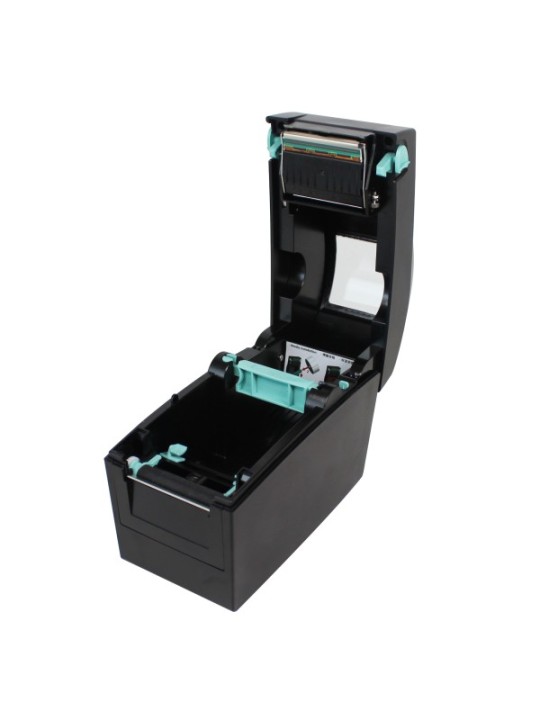

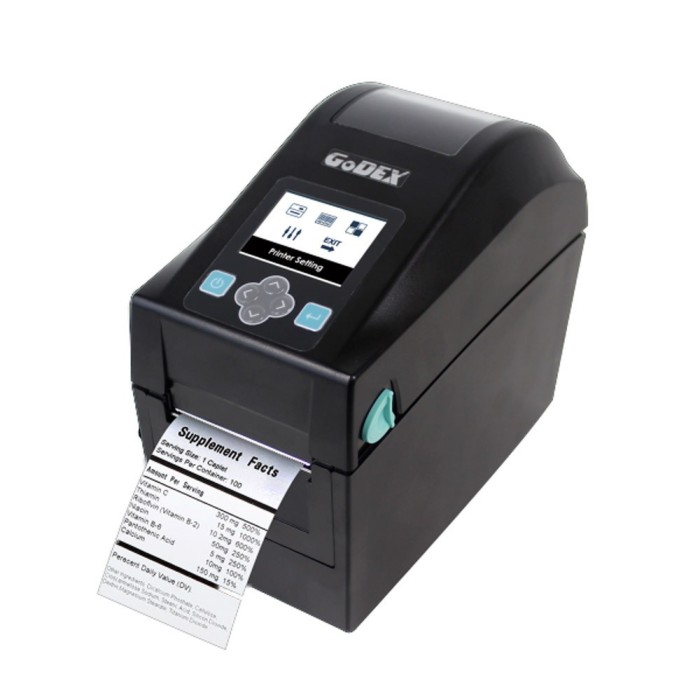

Godex DT230iL label printer
DT230iL
The DT200L series supports linerless media printing with 203 dpi or 300 dpi printing resolution. A full line of optional accessories is available.
Delivery time from 1 day
Easy and quick return of goods
The price in the e-store is -20% lower
Pick up in the Inktoner store, free
| Feature | Value |
|---|---|
| Media Support | Continuous linerless label only (no liner), optional linerless cutter |
| Print Method | Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 4 inches per second (ips) (102 mm/s) |
| Print Width | 2.24 inches (57 mm) |
| Print Length | Min. 1.57 inches (40 mm); Max. 4.72 inches (120 mm) without cutter |
| Media Types | Continuous linerless label |
| Media Thickness | 0.003–0.004 inches (0.08–0.10 mm) |
| Label Roll Diameter | Max. 5 inches (127 mm) |
| Core Diameter | 1 inch (25.4 mm), 1.5 inches (38.1 mm) |
| Processor | 32-bit RISC CPU |
| Memory | 128 MB Flash (60 MB user available), 32 MB SDRAM |
| Printer Language | EZPL, GEPL, GZPL, GDPL (auto switch) |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B; Bitmap fonts scalable up to 8×; TrueType fonts (Bold / Italic / Underline); Asian fonts: Traditional Chinese, Simplified Chinese, Japanese, Korean |
| Barcodes | 1D: Code 39, Code 93, Code 128, EAN-8 / EAN-13, UPC-A / UPC-E, GS1 DataBar, and more; 2D: QR Code, DataMatrix, PDF417, Aztec, MaxiCode, Micro QR, GS1 Composite |

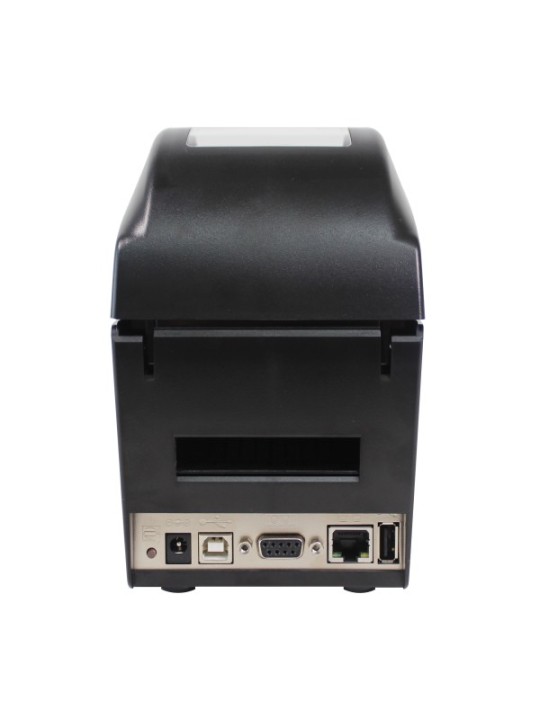

| Interfaces | USB 2.0, Serial Port (RS-232, DB-9), Ethernet 10/100 Mbps, USB Host (A-Type) |
| Control Panel | Color TFT LCD with navigation button; Power button, Calibration button, FEED key |
| Power | Auto switching 100–240V AC, 50–60 Hz |
| Environment | Operating: 5 °C to 40 °C; Storage: -20 °C to 50 °C |
| Humidity | Operating: 30%–85% non-condensing; Storage: 10%–90% non-condensing |
| Dimensions | 207 × 112 × 171 mm (8.15 × 4.41 × 6.73 inches) |
| Weight | 1.07 kg (2.36 lbs), excluding consumables |
| Certifications | CE (EMC), FCC Class B, CB, UL, cUL, CCC, BSMI, UKCA |
| Warranty | 3-year limited warranty |
DT230iL
Data sheet
- Manufacturer
- GoDEX
- Brand
- GoDEX
- Device
- Printer
- Type printer
- Desktop Printers
- Type printer
- Labeling
- Screen
- Yes
- Body color
- Black
Specific References
The DT200L series supports linerless media printing with 203 dpi or 300 dpi printing resolution. A full line of optional accessories is available.
