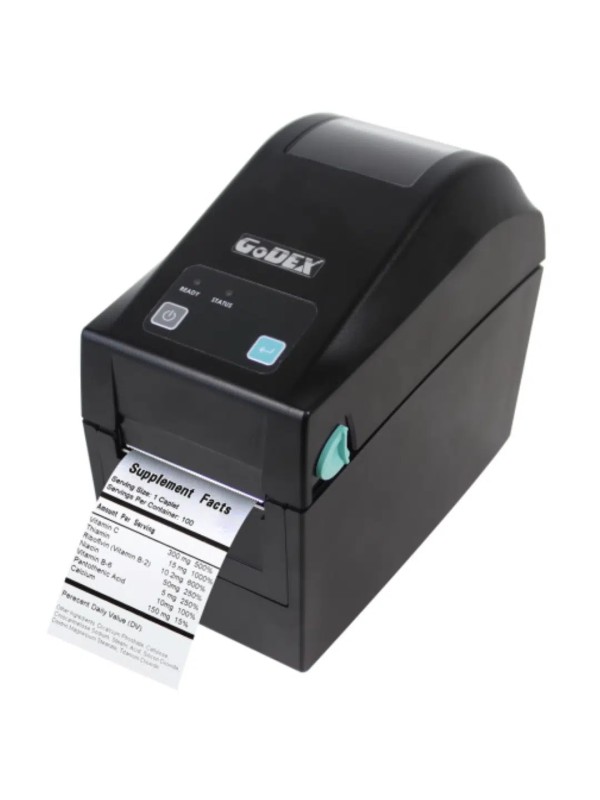

Godex DT230L+ label printer
DT230L+
GoDEX believes in protecting our environment and has been trying hard to lessen the environmental impact of daily life by launching the two-inch linerless barcode printer, the DT200L+ series.
Delivery time from 1 day
Easy and quick return of goods
The price in the e-store is -20% lower
Pick up in the Inktoner store, free
| Feature | Value |
|---|---|
| Media Support | Continuous linerless label only (no liner), optional linerless cutter, non-stick design |
| Print Method | Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 5 inches per second (ips) (127 mm/s) |
| Print Width | 2.24 inches (57 mm) |
| Print Length | With Cutter: Min. 1.57 inches (40 mm)**; Max. 6.3 inches (160 mm) Without Cutter: Min. 1.57 inches (40 mm)**; Max. 4.72 inches (120 mm) |
| Media Types | Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming |
| Media Thickness | Min. 0.0024 inches (0.06 mm) – Max. 0.008 inches (0.2 mm) |
| Label Roll Diameter | Max. 5 inches (127 mm) |
| Core Diameter | 1 inch (25.4 mm), 1.5 inches (38.1 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 128 MB Flash (34 MB for user storage); 128 MB SDRAM |
| Printer Language | EZPL, GFPL, GZPL, GDPL auto switch |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B; 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable; 8 times expandable in horizontal and vertical directions TTF Fonts: (Bold / Italic / Underline) 0°, 90°, 180°, 270° rotatable; Internal TTF Fonts x5 : Traditional Chinese, Simplified Chinese, Japanese, Korean, Western languages |
| Barcodes | 1-D Bar codes: China Postal Code, Codabar, Code 11, Code 32, Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5, Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of 5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart, Random Weight and Pharmacode 2-D Bar codes: Aztec code, Code 49, Codablock F, Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417, QR code, TLC 39, GS1 Composite, DotCode, Marco PDF 417 |
| Interfaces | USB 2.0 (B-TYPE), Serial port (RS-232, DB-9), Ethernet 10/100 Mbps, USB Host (A-Type) |
| Control Panel | Two LEDs : Ready, Status; Power on / off button; Calibration button; Control key : FEED |
| Power | Auto Switching 100-240VAC, 50-60Hz |
| Environment | Operation temperature: 41°F to 104°F (5°C to 40°C); Storage temperature: -4°F to 140°F (-20°C to 60°C) |
| Humidity | Operation: 30-85%, non-condensing; Storage: 10-90%, non-condensing |
| Agency Approvals | CE (EMC), FCC Class B, CB, cULus, ICES-003, UKCA, BSMI, ENERGY STAR |
| Dimension | Length 219 mm (8.62"); Width 112 mm (4.41"); Height 171 mm (6.73") |
| Weight | 1.07 kg (2.36lbs), excluding consumables |
| Options | Linerless Cutter module (Dealer Install); BT (Dealer Install); Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install); WiFi module to WiFi (IEEE 802.11 b/g/n) and BT (BLE 5.0) combo module (Dealer Install); Real time clock (RTC) |
DT230L+
Data sheet
- Manufacturer
- GoDEX
- Brand
- GoDEX
- Type printer
- Desktop Printers
- Type printer
- Labeling
Specific References
GoDEX believes in protecting our environment and has been trying hard to lessen the environmental impact of daily life by launching the two-inch linerless barcode printer, the DT200L+ series.
