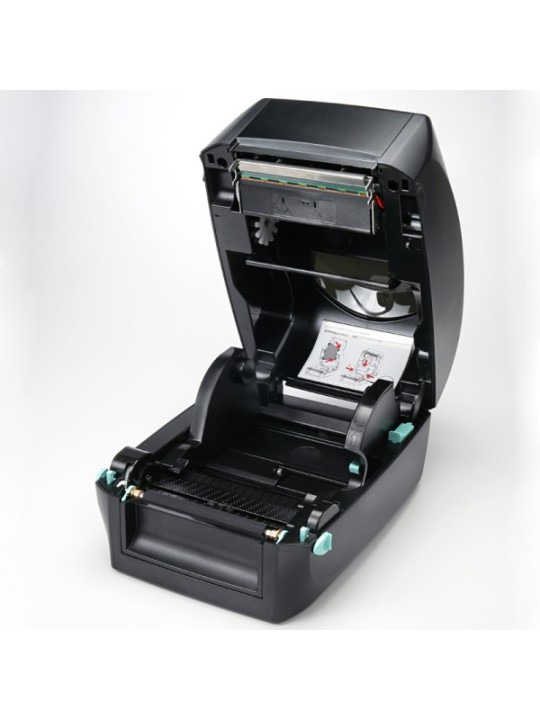

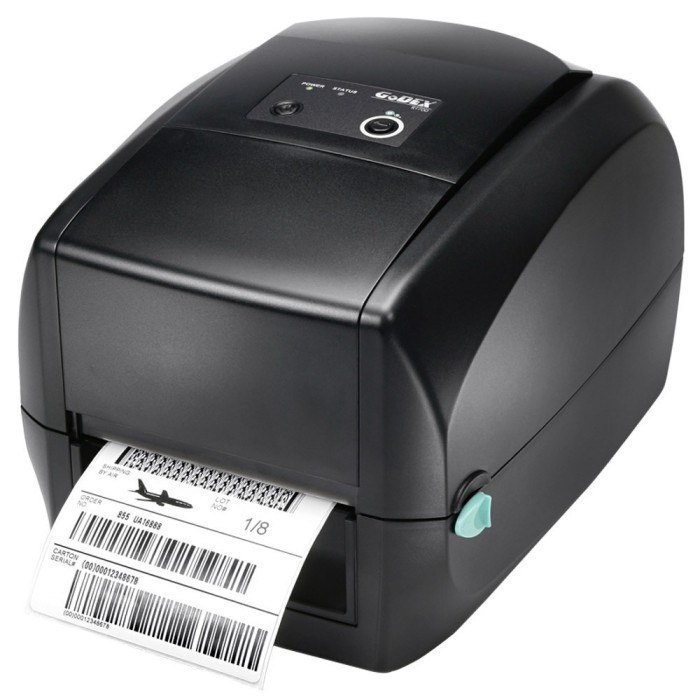

Godex RT700 label printer
GP-RT700
Advanced multi-purpose 4” desktop printer for light to medium duty applications.
Medium duty applications. With its powerful and reliable features, RT700 is the best choice for retail and industrial applications.
Delivery time from 1 day
Easy and quick return of goods
The price in the e-store is -20% lower
Pick up in the Inktoner store, free
| Feature | Value |
|---|---|
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 5 IPS (127 mm/s)** |
| Print Width | 4.25" (108 mm) |
| Print Length | Min. 0.16" (4 mm)** Max. 68" (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 8MB Flash (4MB for user storage) ; 16MB SDRAM |
| Sensor Type | Adjustable reflective sensor (full range). Fixed transmissive sensor, central aligned |
| Media Types | Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming |
| Media Width | 0.79” (20 mm) Min. - 4.65” (118 mm) Max. |
| Media Thickness | Min. 0.0024” (0.06 mm) – Max. 0.01” (0.25 mm) |
| Label Roll Diameter | Max. 5” (127 mm) |
| Core Diameter | 1” (25.4 mm), 1.5” (38.1 mm) |
| Ribbon Types | Wax, wax / resin, resin |
| Ribbon Length | 984’ (300 m) |
| Ribbon Width | Min. 1.18” (30 mm) – Max. 4.33” (110 mm) |
| Ribbon Roll Diameter | 2.67” (68 mm) |
| Ribbon Core Diameter | 1” (25.4 mm) |
| Printer Language | EZPL, GEPL, GZPL, GDPL auto switch |
| Label Design Software | GoLabel (for EZPL only) |
| Driver | Windows 7, Windows 8 & 8.1, Windows 10, Window11, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, MAC, Linux |
| SDK | Win CE, .NET, Windows 7, Windows 8 & 8.1, Windows 10, Windows 11, Android, Mac, iOS |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B; 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable; 8 times expandable in horizontal and vertical directions; TTF Fonts: (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Download Fonts | Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable; Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001); 0°, 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions; TTF fonts: (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Barcodes 1-D Bar codes | China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 & 5digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart and Random Weight and Pharmacode |
| Barcodes 2-D Bar codes | Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417, QR code, TLC 39, GS1 Composite, DotCode, Marco PDF 417 |
| Code Pages | Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869; Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257; Unicode UTF8, UTF16BE, UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |

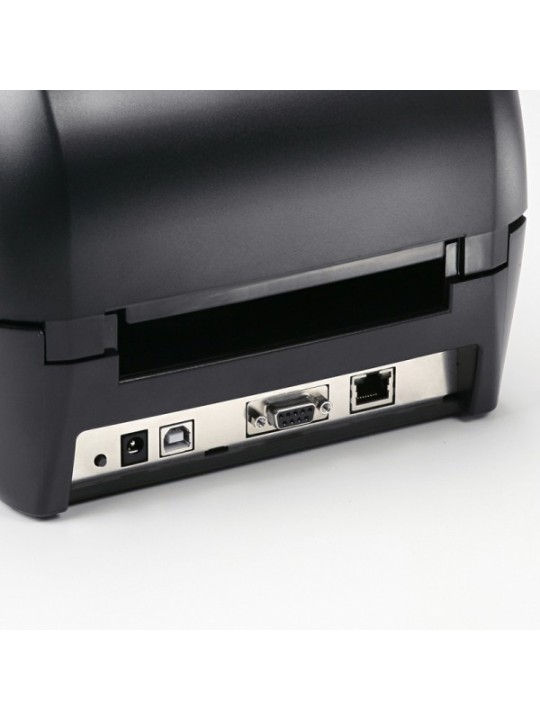

| Interfaces | USB 2.0 (Type B); Serial port (RS232); Ethernet 10/100 Mbps |
| Control Panel | Two dual color LEDs (Ready & Status); Calibration button; Control key: FEED; Power on / off button |
| Real Time Clock | Standard |
| Power | External auto switching power supply; Input: AC 100-240V, 50-60Hz; Output: DC 24V, 2.5A |
| Environment Operation temperature | 41°F to 104°F (5°C to 40°C) |
| Environment Storage temperature | -4°F to 122°F (-20°C to 50°C) |
| Humidity Operation | 30-85%, non-condensing |
| Humidity Storage | 10-90%, non-condensing |
| Agency Approvals | CE(EMC), FCC Class A, CB, cULus, CCC, BIS, UKCA, ICES-003, KC, ENERGY STAR |
| Dimension | Length 280 mm (11.0”); Width 215 mm (8.46”); Height 187 mm (7.36”) |
| Weight | 2.4 kg (5.29 lbs), excluding consumables |
| Options | Cutter; Label Dispenser; External label roll holder for 10” (250 mm) O.D. label rolls; External label rewinder |
| Warranty | 3-year limited warranty |
GP-RT700
Data sheet
- Manufacturer
- GoDEX
- Brand
- GoDEX
- Device
- Printer
- Type printer
- Desktop Printers
- Type printer
- Labeling
- Screen
- No
- Body color
- Black
Specific References
Advanced multi-purpose 4” desktop printer for light to medium duty applications.
Medium duty applications. With its powerful and reliable features, RT700 is the best choice for retail and industrial applications.
